Air Motor with Gearbox, 2-16kW

Motor Power: 2-16 kW (2.7-21.4 hp)

geared piston air motor

Geared Piston Air Motor (brand: ARMAK)

Air Pressure (max.): 15 bar (218 psi)

Temperature (max.): 150 °C

Design:

  • Piston Air Motor, air-operated (pneumatic), geared
  • New contact-free Drive Concept
    → long operating life
  • Completely enclosed motor casing
    → no internal corrosion
    → no internal oil sump

Features:

  • Explosion-Proof (according to ATEX)
  • Non-vibrating, even at high speeds
  • Compact design, freedom of installation

Applications:

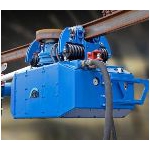

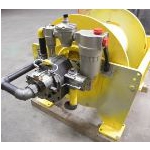

  • Pneumatic Engineering: winch drives, conveyor systems, mining & off-shore (explosion hazardous environment)
  • Renewable Energies: to convert heat into electric current (biogas plants, sun collector systems)

Options:

  • Different metric flanges (according to IEC standard)
  • Different control valves: lever control valve, remote control valve or power valve

Brand: ARMAK, Germany

Technical Data:
Motor Power* (kW) Speed min. (rpm) Speed max.* (rpm) Torque Starting (Nm) Torque max.* (Nm)
AGP04 3.5 75 2,400 16 14
AGP07 8.0 75 1,600 90 50
AGP10 11.0 75 1,100 140 95
AGP16 16.0 75 1,300 165 120
AGP110 2.2 75 2,400 10 8
AGP210 3.5 75 2,400 16 14
AGP310 8.0 75 1,600 90 50
AGP410 11.0 75 1,100 140 95
AGP510 16 75 1,300 165 120
* at 6 bar
